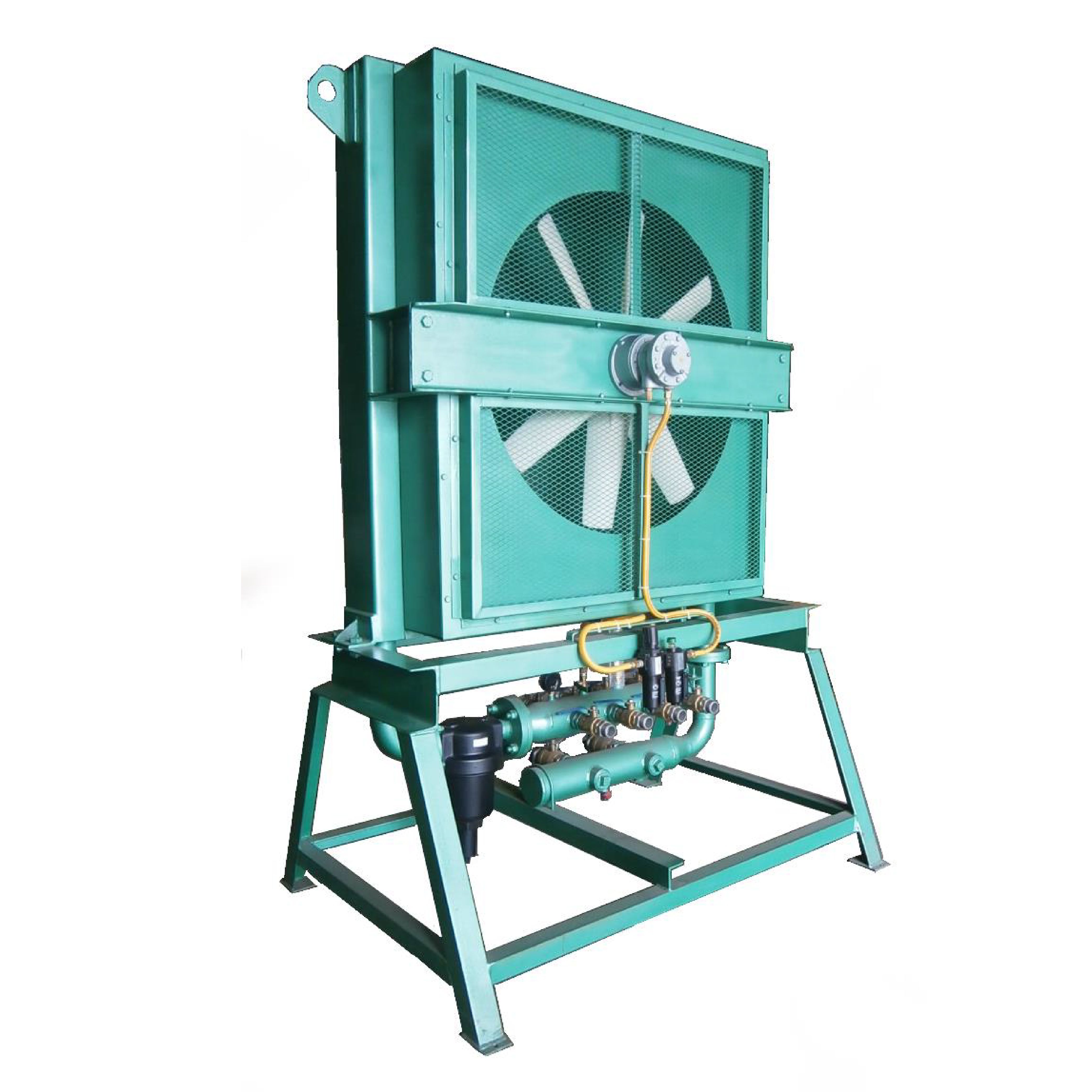

This air cooler is designed for efficient cooling of high-temperature compressed air. It handles air inlet temperatures up to 80°C and delivers stable airflow with a safe working pressure of 10 bar, making it ideal for industrial applications.
| Depth (mm) | 1050 |
| Width (mm) | 1574 |
| Height (mm) | 2200 |
| Weight (kg) | 450 |
| Air Capacity | 3060m³/hour (1800cfm) |
| Inlet Manifold | 2 ports x 2" c/w ballvalves |
| Additional Info | 2 ports x 1" c/w ballvalves |
| Outlet Manifold | 5 ports x 1-1/2" c/w 1-1/4" ballvalves |
| Air-driven Motor | 5 Hp |
| E) Cooler Material | Copper alloy tubes / alumimun fins |
| Standard Accessories | Pressure gauge, safety relief valve, 2" moisture separator with drain valve, air filter, regulator & lubricator assy |
| Air Inlet Temperature | 80 deg C |
| Safe Working Pressure | 145 psi (10bar) |
| Air Outlet Temperature | 10 deg C above ambient |
